Technical Specification

Power Handling Capacity: 50 Watts integrated programme material
(with Monitor Gold drive unit)

Frequency Range: 30 Hz to 20,000 Hz, +/- 4dB

Conversion Efficiency: In excess of 20 per cent over entire range
(four to five times that of conventional systems)

Rear Horn Development: Effective 20 Hz to 250 Hz

Front Horn Development: Effective 250 Hz to 1000 Hz

Polar Distribution, 60 degree Inculded Angle: -4dB at 10,000 Hz

Overall Dimensions:
Height: 4 ft 10.5 inches
Width at Walls: 3 ft 7 inches
Frontal Width: 29.25 inches
Depth, front to corner: 26.5 inches

Fabric: Vynair

Finish: Hand Rubbed Mahogany, Walnut or Teak

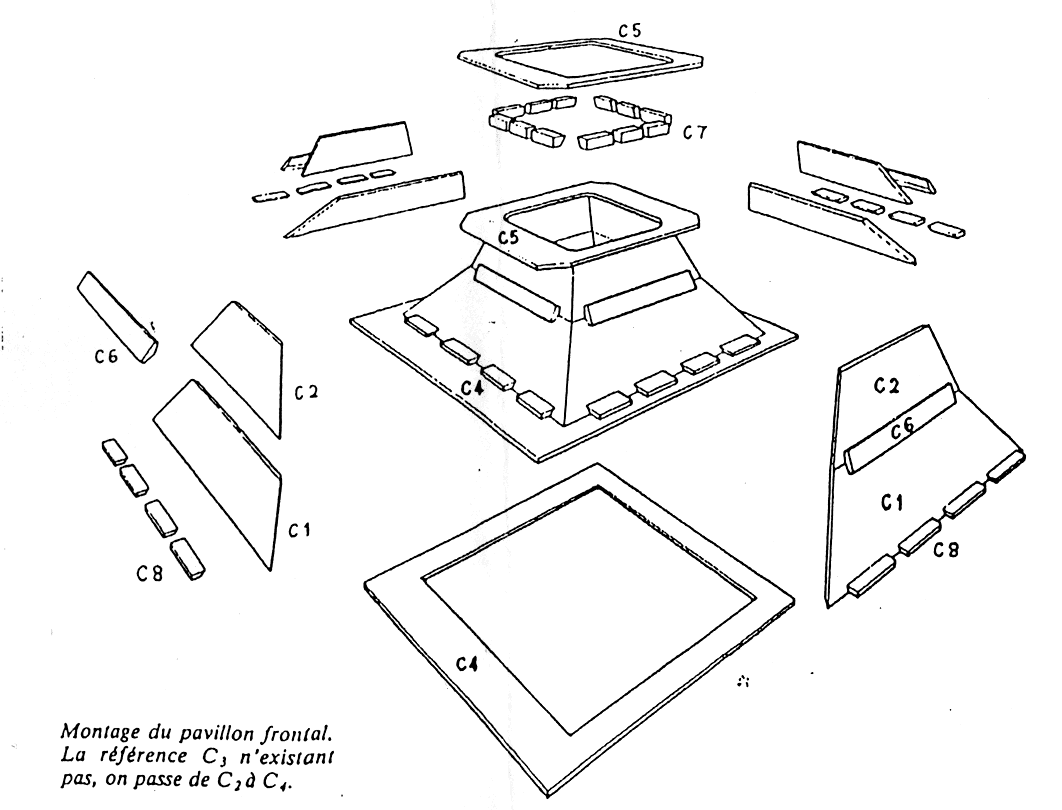

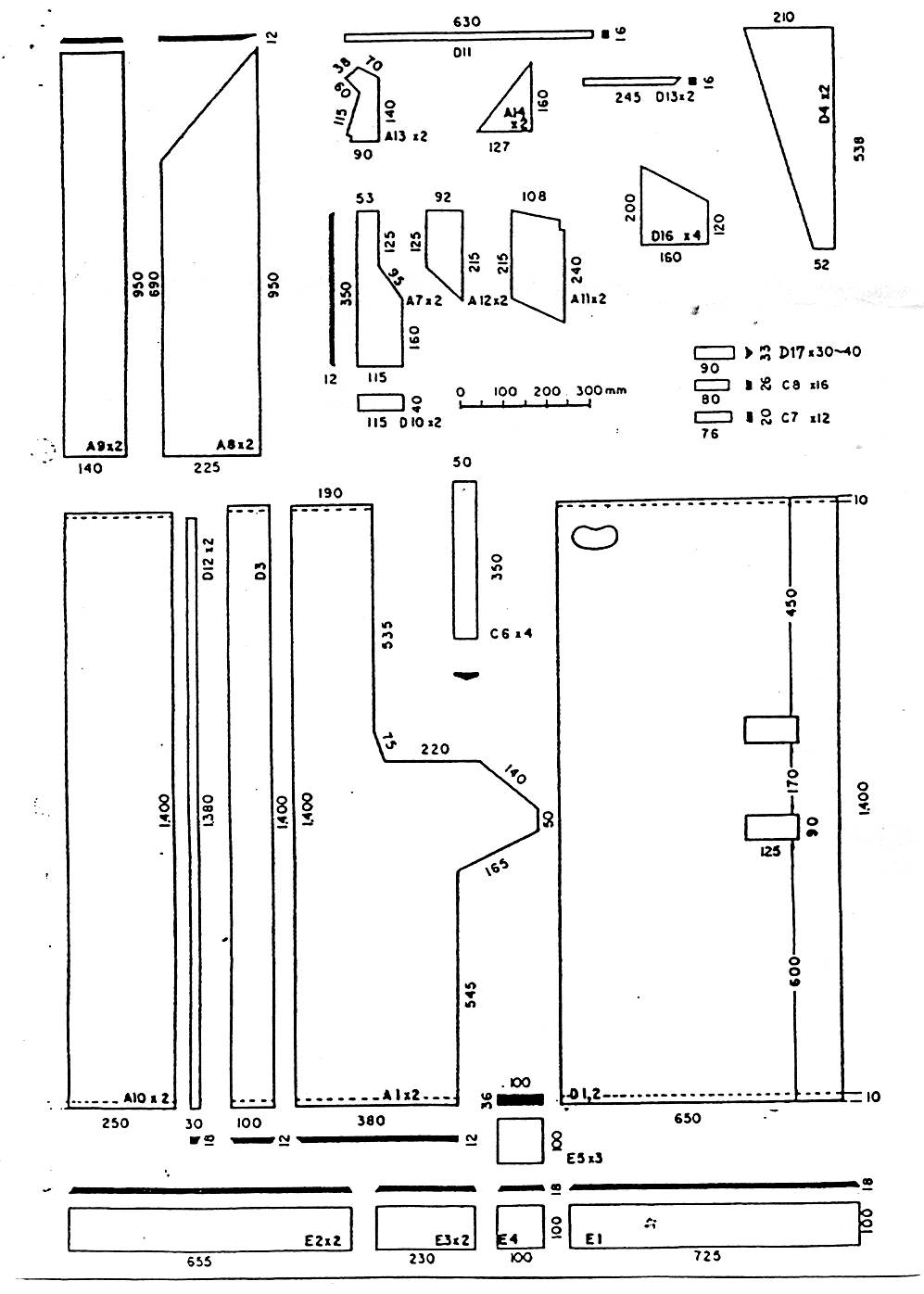

Autograph Design Plans
(copies kindly provided by M. J. Rajiv of India, and Alain Kobsch of France.)

These plans show the extreme complexity of the horn development system within the Autograph enclosure. There are many, many parts to be made, and it would be a challenging task to build a cabinet. The plans here are presented for interest. I cannot say how practical it would be to build a cabinet from them, and I cannot attest to the accuracy of completeness of the plans.

Drawing-1; Drawing-2; Drawing-3; Drawing-4; Drawing-5; Drawing-6; Drawing-7

Autograph Crossover
The rear horn-loding of this enclosure increases the efficiency of the LF driver section of the dual concentric. The front horn loading of the drive unit also assists to increase the efficiency of the LF unit. To obtain increased output from the HF-compression driver (to match the increase output from the LF driver), a modified crossover is required that drives the HF-unit harder. This is acheived through the use of an auto-transformer, making the HF-unit appear to have a lower impedance than it actaully does,which in turn will mean that more power is delivered to it for a given output voltage from the amplifier.

The use of the standard Monitor Gold crossover in conjunction with the Autograph enclosure will give a subdued treble response. Likewise, the use of Monitor Red or Monitor Silver in this enclosure will require a special crossover to be built for the HF-unit. The Monitor-HPD crossover could be modified from its original design, as it already has the tapped auto-transformer used in the Monitor Gold crossover.

Another approach would be to bi-amplify the system, thus making proper calibration between HF and LF easy to obtain. Note that the equalisation circuit from within the original crossover for the HF unit will still be required (ie: all those parts after the auto-transformer).
